SHANK ADAPTERS

In top hammer drilling, the “drifter” is the percussion rock drill mounted at the top of the drill string. A shank adapter (also called a shank rod, drill shank, or striking bar in some regions) is the connecting component between the drifter (rock drill) and the drill string in top hammer drilling. It’s one of the four standard consumable parts, alongside drill rods, couplings, and drill bits. We offer over 300 different shank adapters for common rockdrills/drifters.

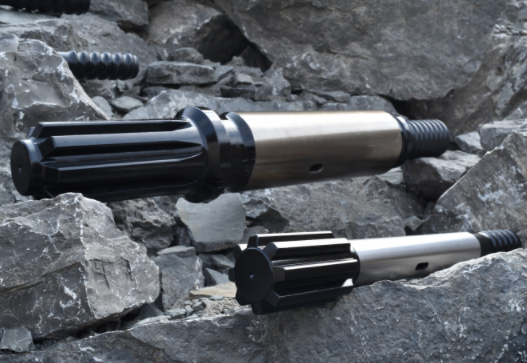

As a SANDVIK ROCK TOOLS ALTERNATIVES, we offer R25,R28,R32,R35,R38,T38,T45,T51, ST58,ST68,EL60 and GT60 shank adapters to suit most drifters.

Please contact us if your shank is not shown in the list below.

SANDVIK/TAMROCK SHANK ADAPTERS

Products	Thread	Diameter	Length	Weight	Part No.
		(mm)	(mm)	(Kg)
Sandvik-Tamrock HLX5/RD525	R38	45	500	5.3	HLX5-45R38-500
	T38	45	500	5.4	HLX5-45T38-500
	T45	45	575	5.7	HLX5-45T45-575
	T38	45	525	5.6	RD525-45T38-525
Sandvik-Tamrock HL500 / HL510	R38	45	500	5.4	HL500-45R38-500
	T38	45	550	5.9	HL500-45T38-550
	T45	45	550	6.2	HL500-45T45-550
Sandvik-Tamrock HL600 / HL600S	R32	45	600	5.8	HL600-45R32-600
	R38	45	525	5.6	HL600-45R38-525
	T38	45	525	5.6	HL600-45T38-525
	T38	45	600	6	HL600-45T38-600
	T45	45	525	5.8	HL600-45T45-525
	T45	45	600	6.4	HL600-45T45-600
Sandvik-Tamrock HL700 / HL800	T38	45	600	7	HL700-45T38-600
	T38	52	600	8.4	HL700-52T38-600
	T45	45	600	7.2	HL700-45T45-600
	T45	52	600	8.8	HL700-52T45-600
	T51	52	600	9.2	HL700-52T51-600
Sandvik-Tamrock HL1000	T45	52	670	10	HL1000-52T45-670
	T51	52	590	9.3	HL1000-52T51-590
	T51	52	670	10.2	HL1000-52T51-670
Sandvik-Tamrock HL1500/HL500PE	EL60	80	760	21.35	HL1500-80EL60-760
	GT60	80	760	21.35	HL1500-80GT60-760
	ST58	80	635	17.3	HL1500-80ST58-635
	GT60	65	760	15.8	HL1500PE-65GT60-760
	T51	65	760	16.7	HL1500PE-65T51-760

EPIROC/ATLAS COPCO SHANK ADAPTERS

Products	Thread	Diameter	Length	Weight	Part No.
		(mm)	(mm)	(Kg)
Atlas Copco COP1440 /COP1550 / COP1838	R32	52	525	5.8	COP1838-52R32-525
	R38	52	525	6	COP1838-52R38-525
	T38	52	525	6	COP1838-52T38-525
	T45	52	525	6.7	COP1838-52T45-525
	T51	52	525	6.8	COP1838-52T51-525
Atlas Copco COP1640 / COP1840	T38	52	565	7	COP1840-52T38-565
	T45	52	565	7.2	COP1840-52T45-565
	T51	52	565	7.6	COP1840-52T51-565
Atlas Copco COP2160 / COP2560	T45	60	770	10.9	COP2560-60T45-770
	T51	60	770	11	COP2560-60T51-770
Atlas Copco COP2160EX / COP2560EX	T45	63	770	13.2	COP2160EX-63T45-770
	T51	63	770	13.3	COP2160EX-63T51-770
Atlas Copco COP1036 / COP1038HB /COP1038H /COP1238HF / COP1238LE /COP1238ME	R32	38	485	4	COP1238-38R32-485
	R32	38	500	4.1	COP1238-38R32-500
	R32	38	575	4.8	COP1238-38R32-575
	R38	38	462	3.9	COP1238-38R38-462
	R38	38	485	4.1	COP1238-38R38-485
	R38	38	500	4.2	COP1238-38R38-500
	T38	38	485	4.1	COP1238-38T38-485
	T38	38	500	4.2	COP1238-38T38-500
	T38	38	575	5	COP1238-38T38-575
	T38	38	590	5.2	COP1238-38T38-590
	T45	45	500	5.2	COP1238-45T45-500
	T45	45	575	5.8	COP1238-45T45-575
Atlas Copco COP1038HL / COP1238	R32	38	575	4.7	COP1238-38R32-575
	T38	38	575	4.8	COP1238-38T38-575
	T45	45	575	6	COP1238-45T45-575
Atlas Copco COP1432 / COP1440 /COP1532 /COP1838HD	R32	38	435	4	COP1838-38R32-435
	R32	38	525	4	COP1838-38R32-525
	R38	38	435	4	COP1838-38R38-435
	R38	38	455	4.1	COP1838-38R38-455
	R38	38	525	4.7	COP1838-38R38-525
	T38	38	525	5.7	COP1838-38T38-525
Atlas Copco COP3060EX/ COP3060MEX	T51	60	840	17.3	COP3060EX-60T51-840
	GT60	60	840	18	COP3060EX-60GT60-840
	TW60	60	840	18	COP3060MEX-60TW60-840

Ingersoll Rand and Montabert Shank adapters

Products	Thread	Diameter	Length	Weight	Part No.
		(mm)	(mm)	(Kg)
Ingersoll Rand YH65 / YH70	T38	45	500	5	YH65-45T38-500
	T45	45	500	5.2	YH65-45T45-500
Ingersoll Rand YH80A	T38	51	500	5.5	YH80A-51T38-500
	T45	51	500	5.7	YH80A-51T45-500
	T51	51	500	6.4	YH80A-51T51-500
Montabert HC109	R32	45	530	5.6	HC109-45R32-530
	R38	45	530	5.9	HC109-45R38-530
	T38	45	490	5.5	HC109-45T38-490
	T38	45	530	5.9	HC109-45T38-530
	T45	45	530	6.1	HC109-45T45-530
Montabert HC80 / HC90 / HC105	R32	38	440	3.6	HC80-38R32-440
	R38	38	440	3.9	HC80-38R38-440
	T38	38	440	3.9	HC80-38T38-440
Montabert HC120RP	T45	51	670	9.1	HC120RP-51T45-670
	T51	51	670	9.2	HC120RP-51T51-670

FURUKAWA SHANK ADAPTERS

Products	Thread	Diameter	Length	Weight	Part No.
		(mm)	(mm)	(Kg)
Furwkawa HD609	T38	45	620	6.2	HD609-45T38-620
	T38	45	690	6.4	HD609-45T38-690
	T45	45	620	6.3	HD609-45T45-620
	T45	45	690	6.9	HD609-45T45-690
Furwkawa HD612	T45	50.9	670	8.5	HD612-50.9T45-670
	T45	50.9	710	9.1	HD612-50.9T45-710
	T51	50.9	670	8.7	HD612-50.9T51-670
	T51	50.9	710	9.3	HD612-50.9T51-710
Furwkawa HD615	T45	58	700	10.6	HD615-58T45-700
	T51	58	700	10.8	HD615-58T51-700
Furwkawa HD709	T38	44.8	590	6.2	HD709-44.8T38-590
	T38	44.8	620	6.6	HD709-44.8T38-620
	T45	44.8	590	6.5	HD709-44.8T45-590
	T45	44.8	620	6.8	HD709-44.8T45-620
Furwkawa HD712	T45	51	590	8.4	HD712-51T45-590
	T45	51	790	9.7	HD712-51T45-790
	T51	51	590	8.8	HD712-51T51-590
	T51	51	790	9.9	HD712-51T51-790

contact us (SANDVIK ROCK TOOLS ALTERNATIVES) for more information if you want to learn more about our shank adapter offers.
